products status : Stock
type : Rack
processor main frequency : 1.8GHz
processor type : Xeon Gold 6416H
model number : R960
place of origin : Beijing, China
Memory : 2.4TB *16
Processor : Xeon Gold 6416H
RAM Slots : 24
Drive Bays : 8 x 2.5'' SAS/SATA/SSD
Form Factor : 2U Rack Server
Storage Controller : P48I-A
Weight : 30kg
Warranty : 3 Years
Power Supply : 1600W*2
Hard Drive : 32Gb *24
MOQ : 2 pieces
Price : CN¥10,699.05-19,258.29/pieces
PowerEdge R960 | |||
CPU | Up to four 4th generation Xeon Scalable processors with up to 60 cores each Supports up to four 350W processors | ||
memory | Up to 64 DDR5 RDIMMs NVDIMM: Not supported DIMM speed: up to 4800 MT/s | ||
storage | Up to 24 2.5-inch SAS/SATA HD/SSD Up to 24 x 2.5-inch NVMe SSDs Up to 8 E3.S NVMe hard drives Rear: Up to two 2.5" hot-swappable SAS/SATA or NVMe HDDs Internal: USB and internal BOSS-N1 (2 x M.2 NVMe) are used as boot disks. No IDSDM. Bandwidth: Up to 32Gb NVMe/24Gb SAS/6Gb SATA | ||
Storage controller | RAID (PERC 11 and 12) SAS / SATA / NVMe / RAID (PERC 11 and 12) SAS3 and SAS4 Chipset SATA/Software RAID: Yes | ||
Internet | 1 x 1GbE LOM and 1 x OCP3 NIC | ||
PCle slot | Up to 8 PCIe Gen4 or Gen5 slots No SNAPI. CXL-free | ||
Gepu | GPUs are not supported | ||
Integration port | Front end: VGA, 1 x USB 2.0, iDRAC Direct Micro USB, ID button and LED Back: VGA, 1 x USB 2.0, 1 x USB 3.0, Management RJ-45, 2 x LOM RJ-45, 1 x Serial (optional) Internal: 1 x USB 2.0 | ||
System administration | iDRAC9 Enterprise Edition, Data Center Edition licensing options; OpenManage Enterprise and plugins (Power Manager, SupportAssist, and Update Manager). iDRAC Direct, Quick Sync 2.0 | ||
High availability | Hot-swappable/RAID controlled hard drives, high-power air-cooled configuration, PSU, BOSS-N1 (2 x M.2 MVMe) | ||
power supply | 1100W, 1400W, 1800W, 2400W, 2800W | ||
size | H x W x D: 4U x 434mm x 812mm | ||
shape | 4U rack server |
![]() |

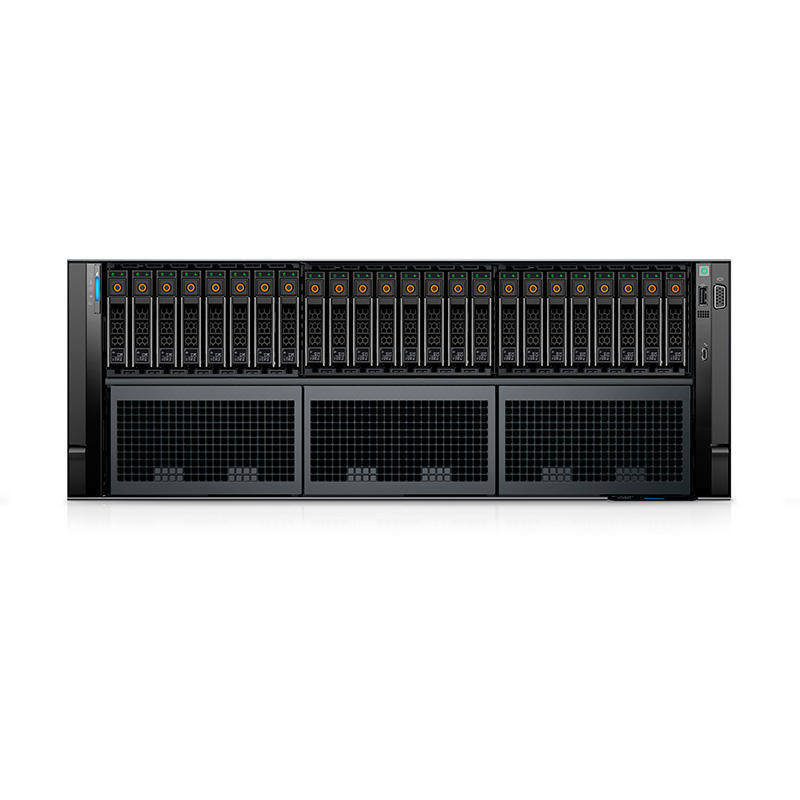

PowerEdge R960 Rack Server 4U Xeon Gold 5412U 32GB RDIMM Images |
